What are the main characteristic parameters of inductors?

An inductor is an electronic component used to store and generate magnetic fields. Its main features include:

1. Inductance: The inductance of an inductor refers to the measurement when it stores a magnetic field. The unit is Henry (H). The larger the inductance value, the stronger the inductor’s ability to store magnetic fields.
2. Frequency response: The frequency response of an inductor refers to the change of its inductance value with frequency. Since there are resistors, capacitors and other components inside the inductor, the inductance value may change as the frequency increases. This is the frequency response of the inductor.

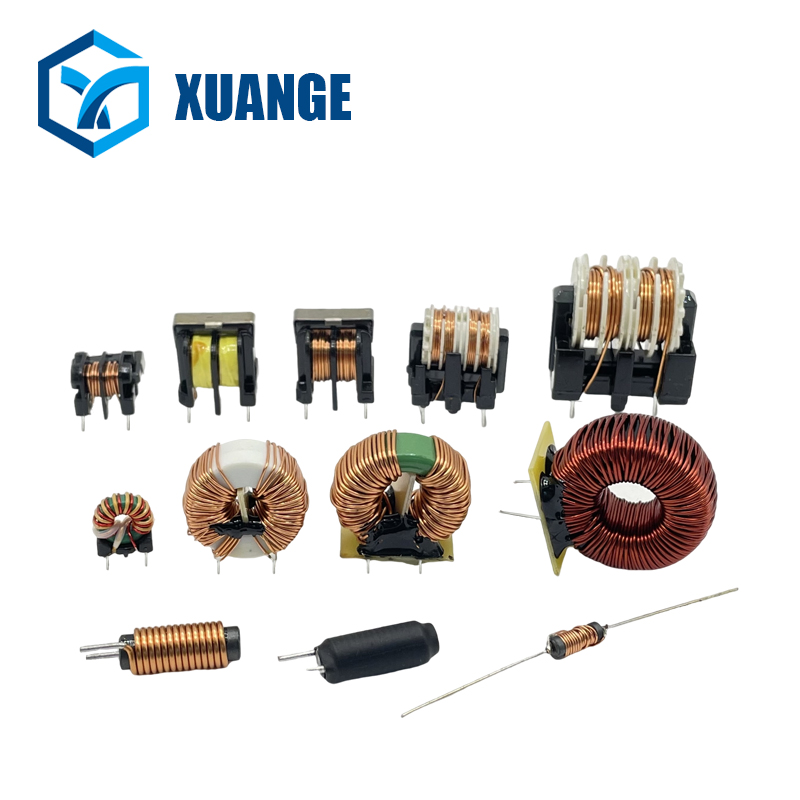

合照图-滤波器白底图
3. Inductor quality factor (Quality Factor, Q value): Q value is an important indicator of the inductor, which describes the energy loss of the inductor. The larger the Q value, the smaller the energy loss of the inductor and the higher the efficiency.
4. Rated current: Rated current refers to the maximum current value that the inductor can safely operate. Above the rated current, the inductor may overheat or be damaged.
5. DC resistance: There will be a certain resistance inside the inductor. This resistance is usually called DC resistance. The DC resistance of the inductor has a certain impact on the energy loss and efficiency of the circuit.

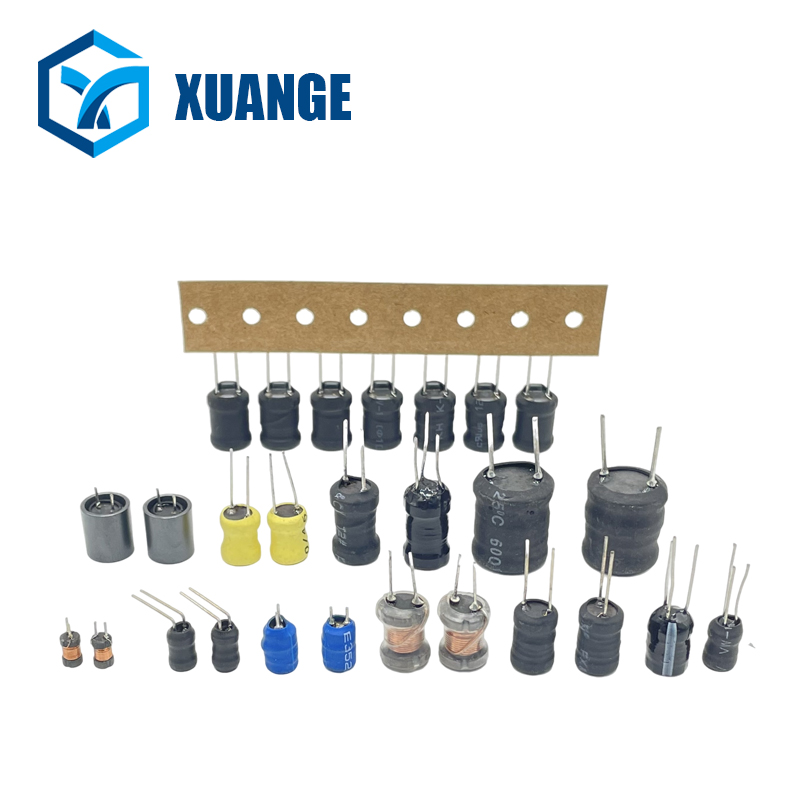

合照图-电感白底图
6. Magnetization curve: The magnetization curve of an inductor describes the magnetization characteristics of the inductor. It represents the relationship between magnetic field strength and magnetic induction intensity, and helps to understand the magnetic field characteristics and nonlinear characteristics of the inductor.
7. Environmental conditions: The working environment of the inductor has a certain impact on its performance and life. Environmental conditions such as temperature and humidity need to meet the specified requirements of the inductor to ensure its normal operation.

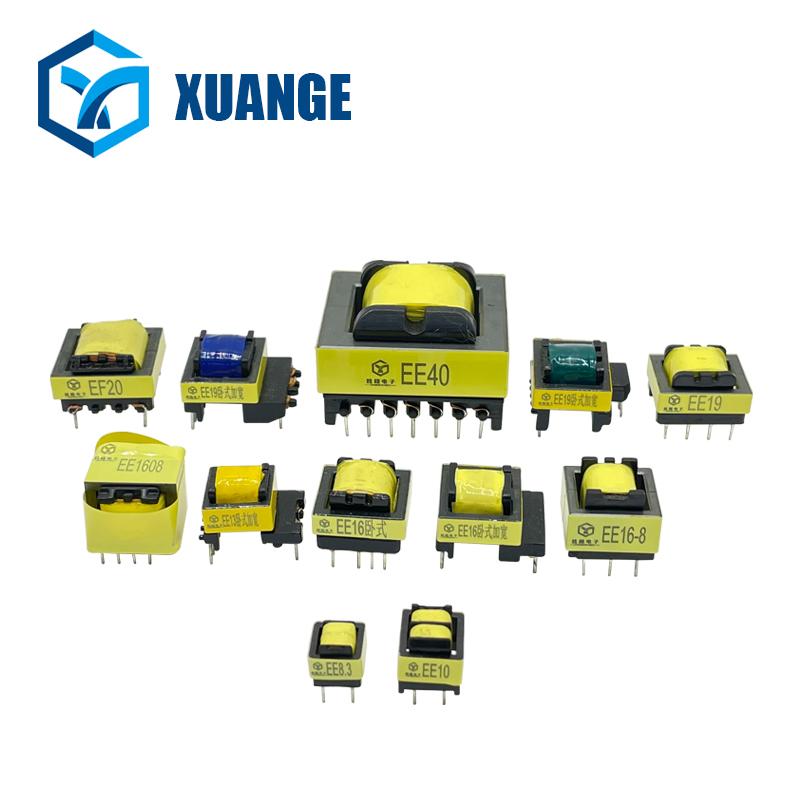

合照图-EE卧式系列白底图
These characteristic parameters comprehensively determine the applicable range and performance of the inductor. When selecting an inductor, consider these parameters based on circuit requirements and application needs to meet design and performance requirements.
